Robust asset tracking and storage solutions for a business likes yours

AssetTracer’s modular design enables your organization to create a bespoke solution that meets your unique requirements.

A fully customized solution, just for you. Choose your own:
  • Compartment sizes
  • Charging options
  • Access methods
  • Integrations
  • Tracking technologies
  • Colors
  • Branding
  • And more!
AssetTracer at a glance
  • Built to last with 18-gauge steel
  • Logging made easy with integrated camera option that records transactions
  • Customize lockers with charging ports, scales, and more
  • Add RFID or USB asset tracking technology for more control
  • Choose between metal doors or metal with clear high-impact polycarbonate windows
  • Pick whatever color lockers you want or add custom branding to make them your own

Compartment Sizes

Mix and match locker module styles to build the perfect solution. Have special requirements? We custom build on request, so just reach out.

INTERNAL DIMENSIONS (W x D x H)

Half-Height-Mod-Single-Door
1-Door Module Half Height

16.7” x 13.4” x 7.9”
424 x 340 x 200mm

1-and-half-Mod-High-Single-Door
1-Door Module One and Half-Height

16.7” x 13.4” x 26.4”
424 x 340 x 670mm

2-Mod-High-Single-Door
1-Door Module Double-Height

16.7” x 13.4” x 34.7”
424 x 340 x 881mm

RTN_Door-Modules_2-Door-horizontal
2-Door Horizontal Module

16.7” x 13.4” x 7.25”
424 x 340 x 184mm

2-Door Verticle Module
2-Door Vertical Module

7.3” x 13.4” x 16.7”
185 x 340 x 424mm

2-Door Module Double-Height
2-Door Module Double-Height

7.3” x 13.4” x 34.7”
185 x 340 x 881mm

3-Door Module Triple-Height
3-Door Module Triple-Height

7.3” x 13.4” x 52.7”
185 x 340 x 1338mm

4-Door Horizontal Module
4-Door Horizontal Module

16.7” x 13.4” x 3.5”
424 x 340 x 89mm

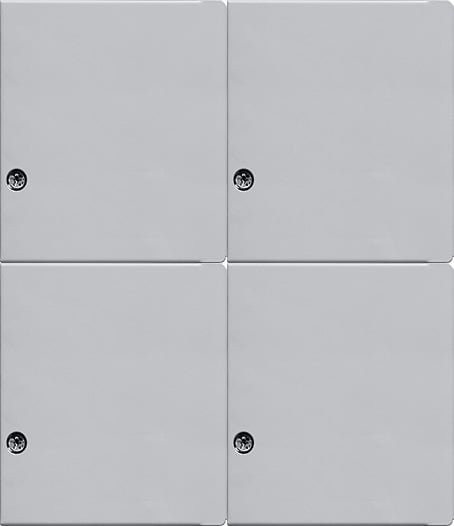

4-Door Module
4-Door Module

7.3” x 13.4” x 7.9”
185 x 340 x 200mm

6-Door Module Double-Height
6-Door Module Double-Height

7.3” x 13.4” x 11”
185 x 340 x 279mm

8-Door Module
8-Door Module

7.3” x 13.4” x 3.5”
185 x 340 x 89mm

Full Size (or terminal) Module
Full Size (or terminal) Module

16.7” x 13.4” x 16.7”
424 x 340 x 424mm

XL Module
XL Module

(cannot be combined with other module sizes)

20” x 18” x 16.75”
508 x 458 x 426mm

Door Options

Choose between steel doors, ventilated steel doors, and clear polycarbonate doors depending on your use case.

Steel Door
Steel Door
Ventilated Steel Door
Ventilated Steel Door
Polycarbonate Door
Polycarbonate Door
Electronics Storage and Mobile Device Management (MDM)
  • Keep electronics safe with ventilated doors
  • Add integrated charging to intelligent lockers to keep your devices fully charged
  • Store and charge multiple devices in each compartment
  • Add video surveillance or RFID/USB asset tracking technology for enhanced security and accountability



ipad-locker
Weapons Storage
  • Protect firearms and other weapons with a rugged steel frame that prevents physical intrusion
  • Keep track of who took which weapon with detailed transaction logging
  • Integrate scales for pepper spray and other weight-regulated asset storage to ensure compliance
  • Add a backup battery to make sure your weapons are accessible even when the power is out
Weapons Storage
Technical Specifications
  • Power: 120V power consumption, 40℉ to 120℉ operational temperature range, optional backup battery
  • Encryption: Secure Sockets Layer (SSL) encryption in transit, enterprise-grade SQL database on the backend
  • Authentication: PIN codes, proximity cards, biometrics (e.g., fingerprint or facial recognition), smartphone, iris recognition



Technical Specifications
