Electronic Key Cabinet Configuration Options

KeyTracer’s modular design adapts to any environment, securely managing keys of all types and sizes with customizable capacity, authentication, and power options to fit your workflow.

Why KeyTracer?
  • Control who can access your keys
  • Customize the solution to meet your exact requirements
  • Extend your investment with integrations
  • Protect your assets and facilities with high-trust RFID technology
  • Get the customer support you need whenever you need it
5 cabinet sizes to store as many key fobs as you need.
  • Up to 384
  • Up to 256
  • Up to 128
  • Up to 64
  • Up to 32

How many keys do you need to manage?

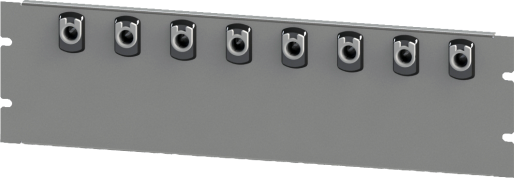

8 key module

Up to eight key rings, with support for long sets of keys.

KeyTracer 8 key module

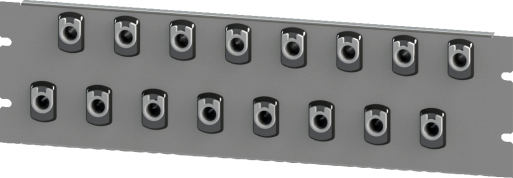

16 key module

Up to 16 key rings, better for larger sets.

KeyTracer 16 key module

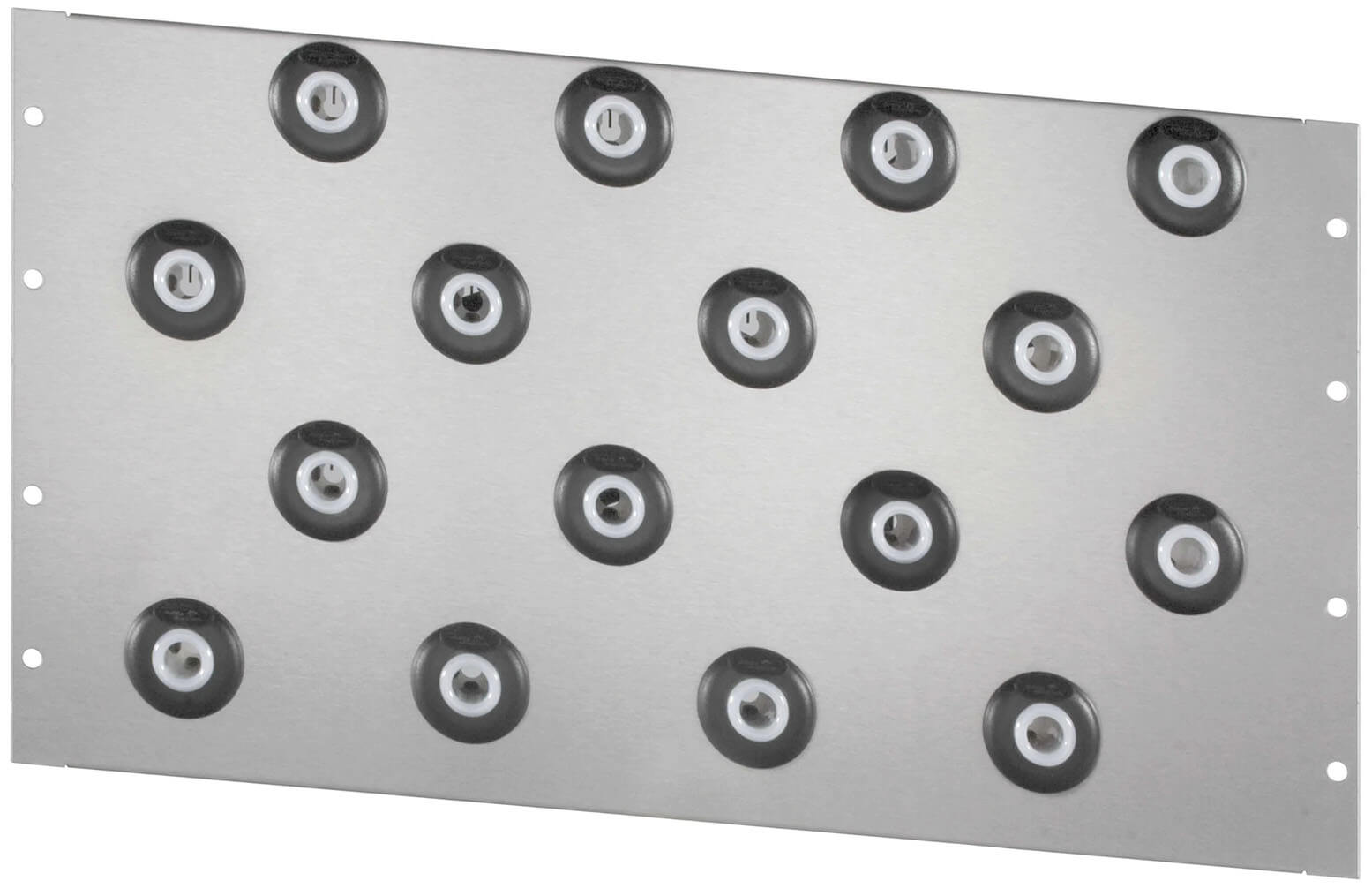

16 wide key module

Up to 16 key rings, with support for long sets.

KeyTracer 16 wide key module

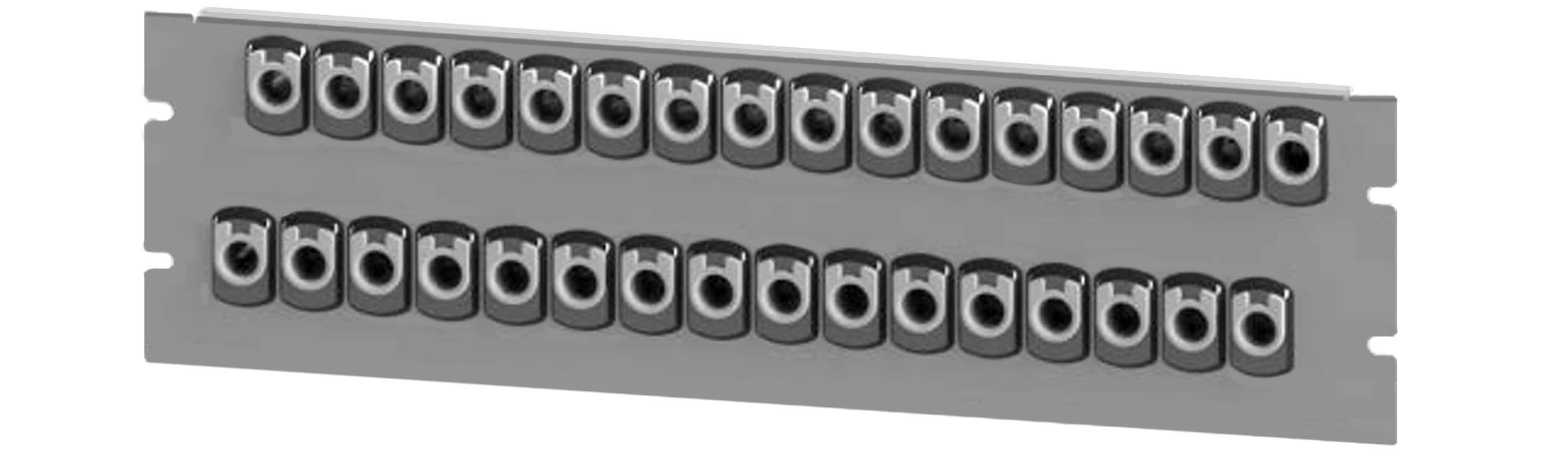

32 key module

Up to 32 key rings, better for smaller sets.

keyPanel DD 32 (1)

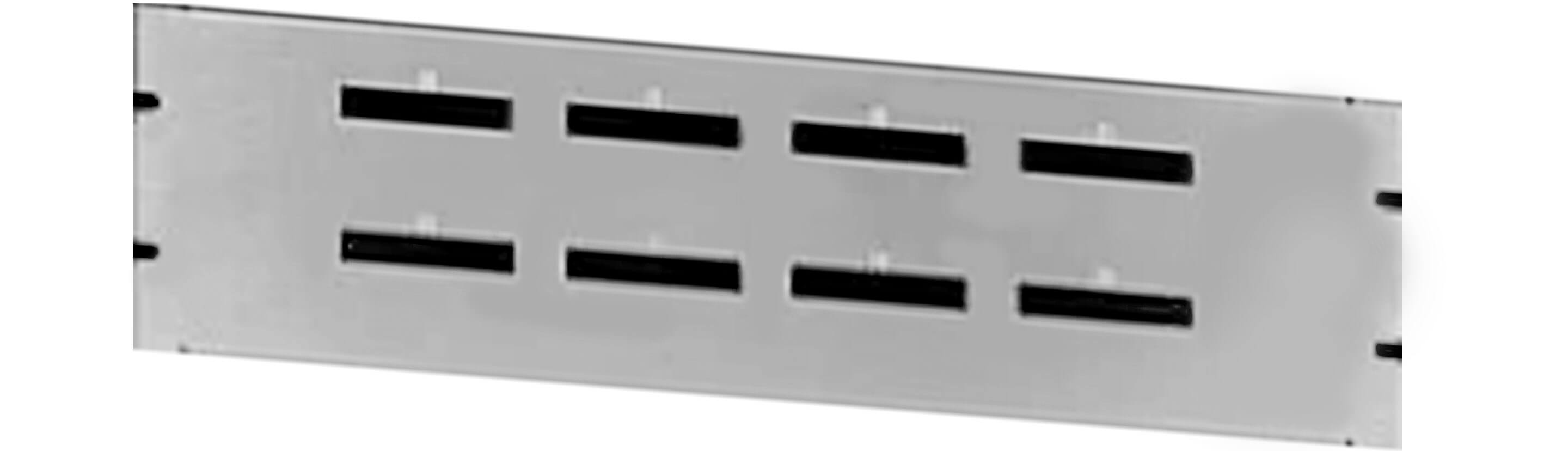

8 card module

Up to eight master key cards, temporary access cards, or credit cards.

KeyTracer 8 card module

Cabinet Sizes

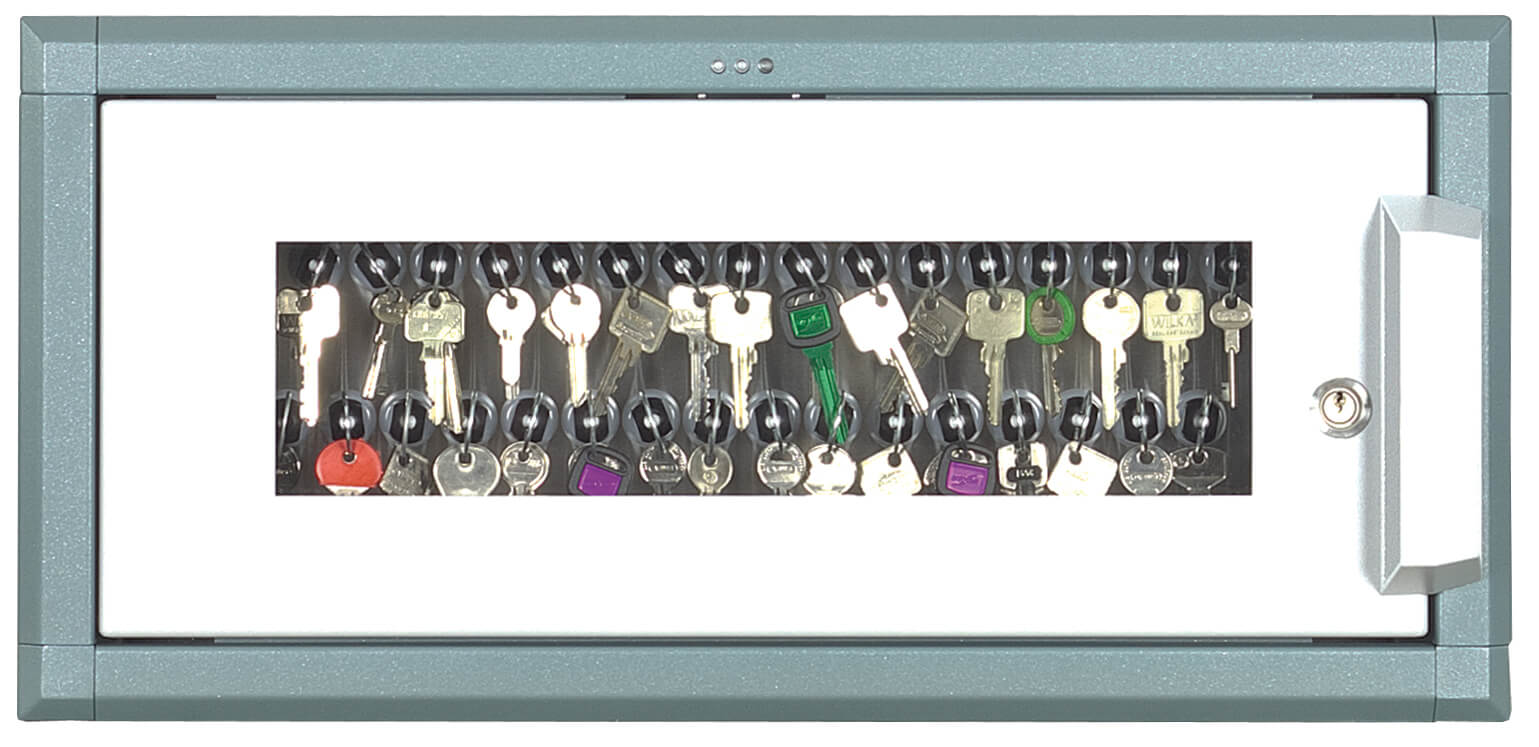

flexx 3u
1 Module Cabinet

24.8” x 11.8” x 8.3” / 33 lbs
630 x 299 x 210 mm / 15 kg

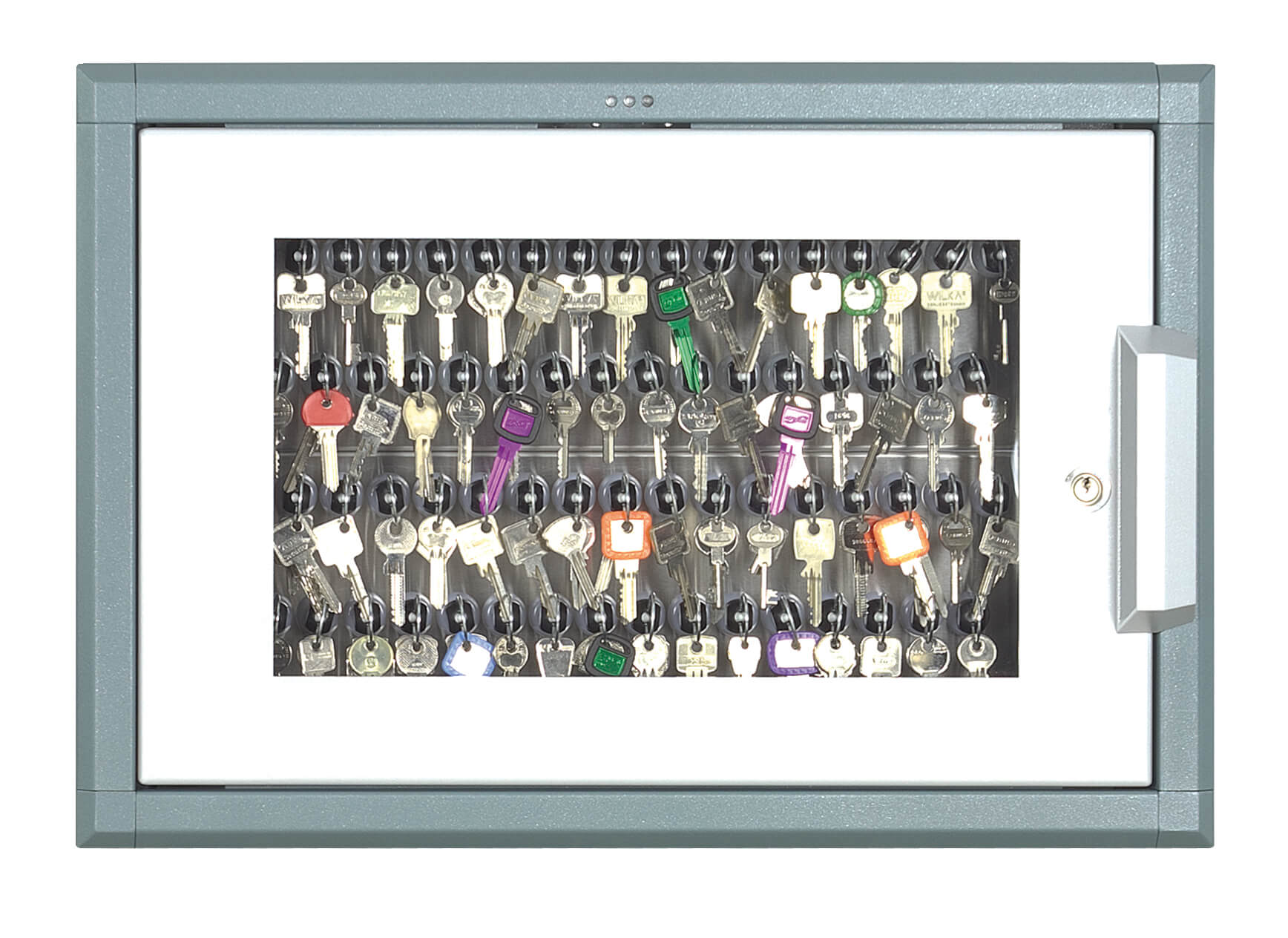

flexx 6u
2 Module Cabinet

24.8” x 17” x 8.3” / 44 lbs
630 x 432 x 210 mm / 20 kg

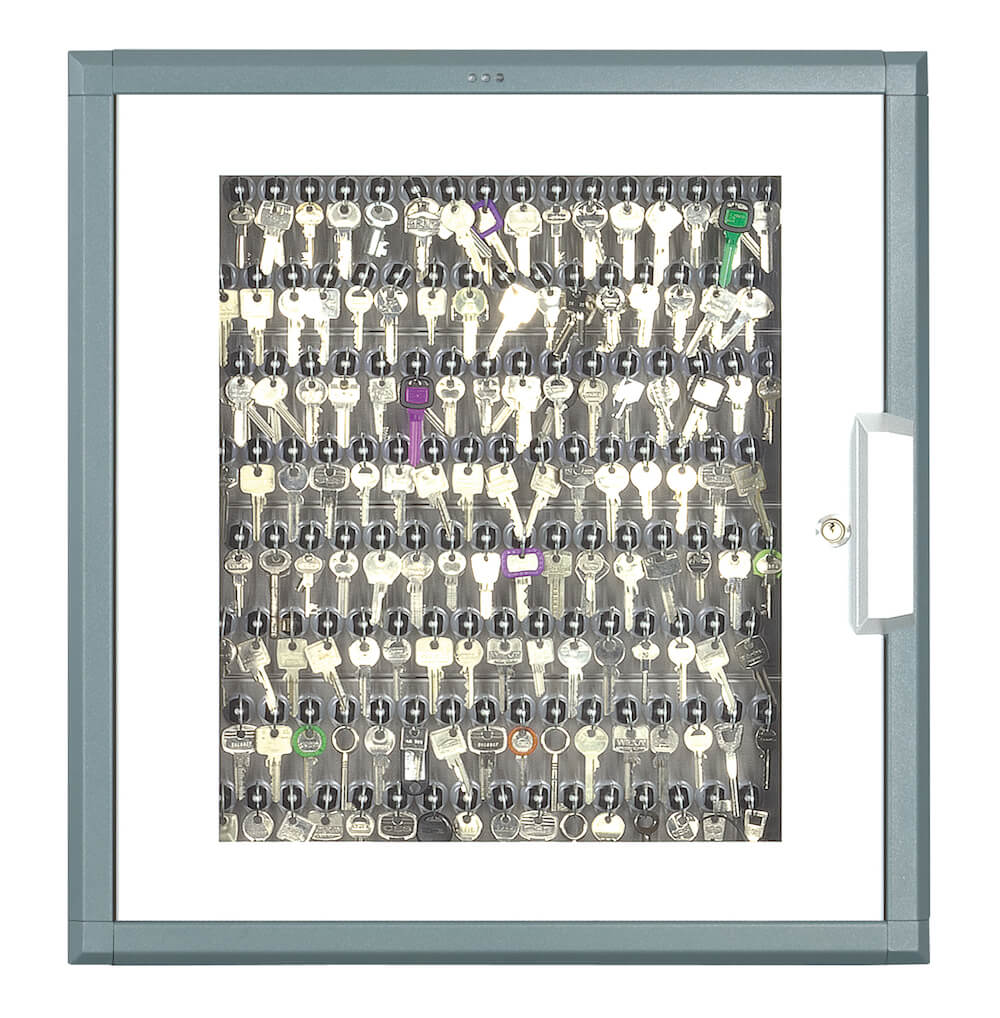

flexx 12 u
4 Module Cabinet

24.8” x 26.2” x 8.3” / 57.3 lbs
630 x 666 x 210 mm / 26 kg

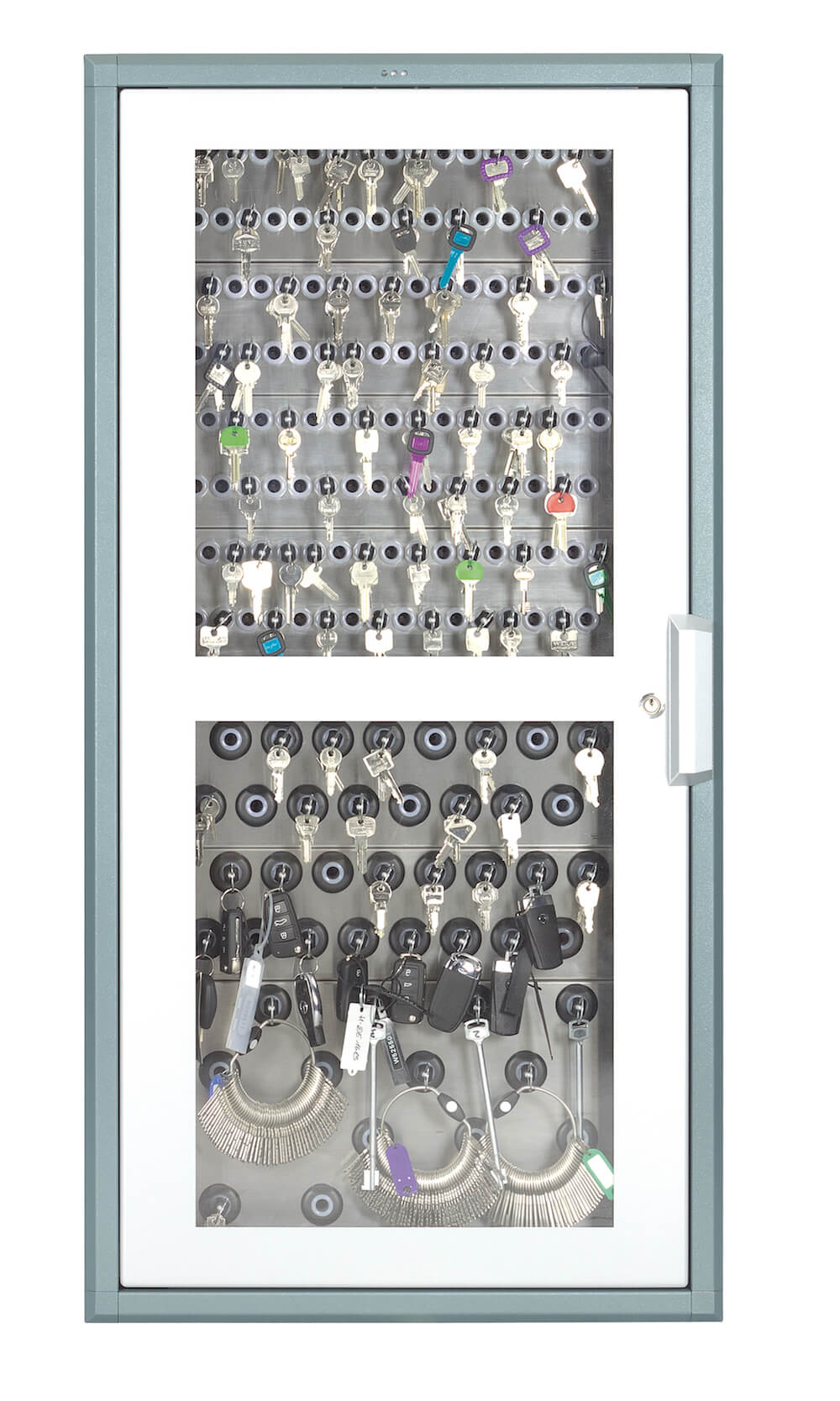

flexx 24 u less keys
8 Module Cabinet

24.8” x 49.3” x 8.3” / 132.3 lbs
630 x 1252 x 210 mm/ 60 kg

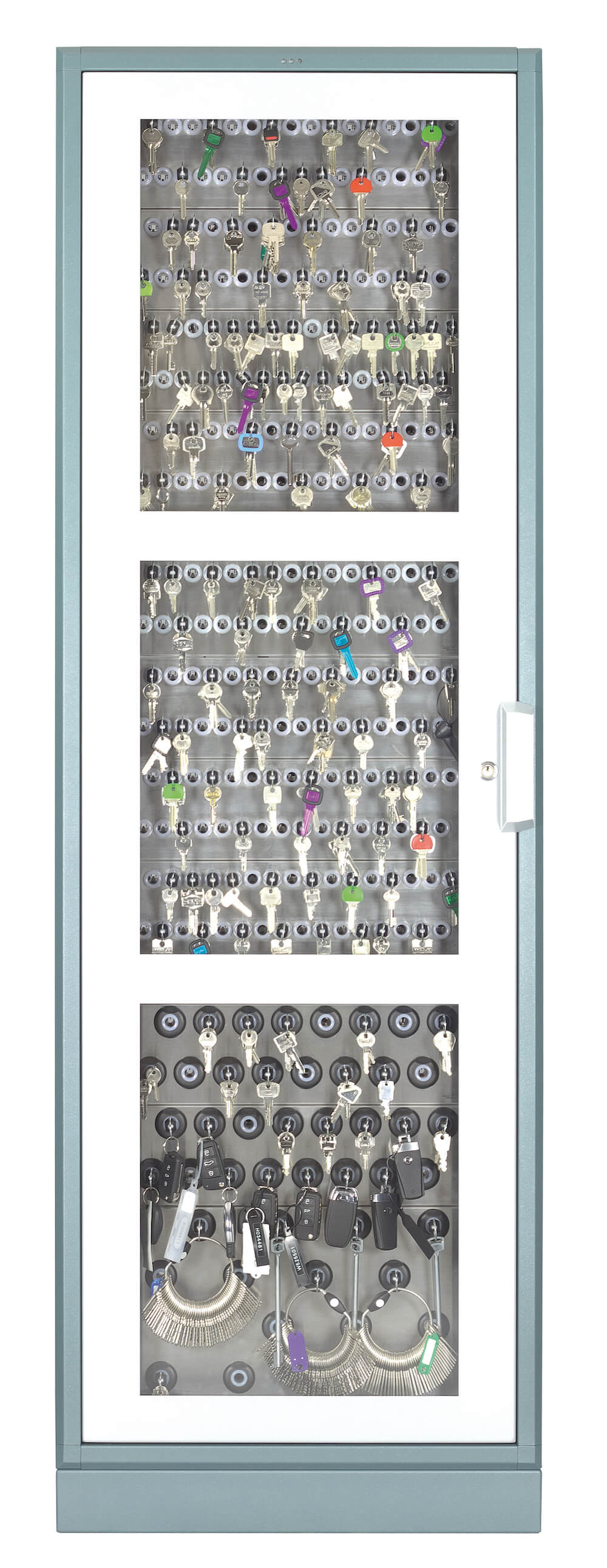

flexx 36 u less keys
12 Module Cabinet

24.8” x 75.6” x 8.3” / 154.3 lbs
630 x 1920 x 210 mm / 70 kg


Material
  • 16-gauge powder-coated stainless steel
  • 1.5mm (0.06”) thick housing
  • 2.5mm (0.10”) thick lock door, window optional

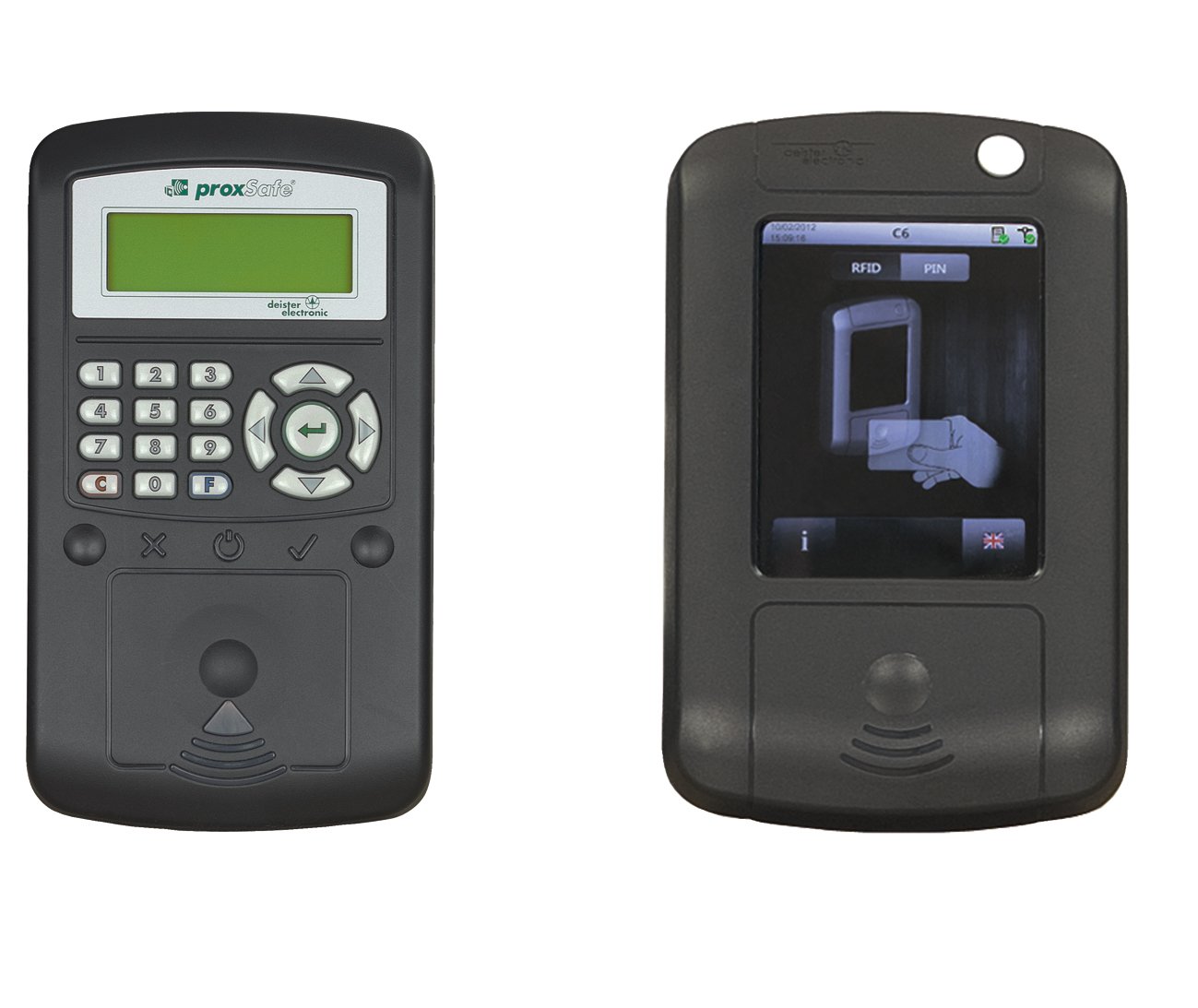

Authentication
  • PIN code
  • RFID fob
  • Proximity card (including most existing access control cards)
  • Biometric (fingerprint or facial reader)
  • IrisID Iris Recognition Scanner
  • Smart Phone

Authentication

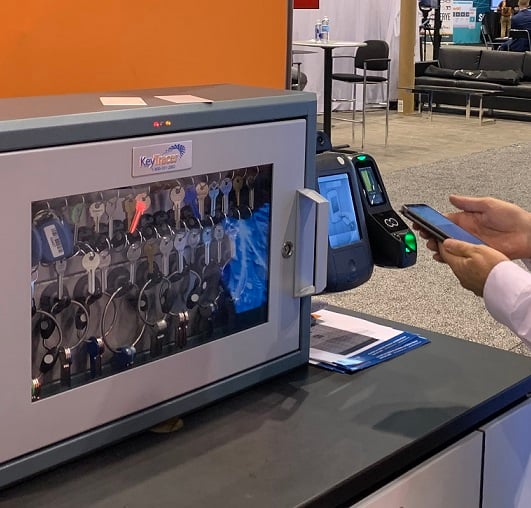

Power
  • 13.8 VDC max / 3 A per housing
  • 110V power through outlet or hard wired, up to 256 key rings per cabinet
  • Backup Battery 12 VDC / 2.3 Ah, 24-48 hours
    functionality (depending on cabinet use)
  • 5° to 50°C (40° to 120°F) operating temperature range
  • Operational 5-95% non-condensing relative humidity



Power

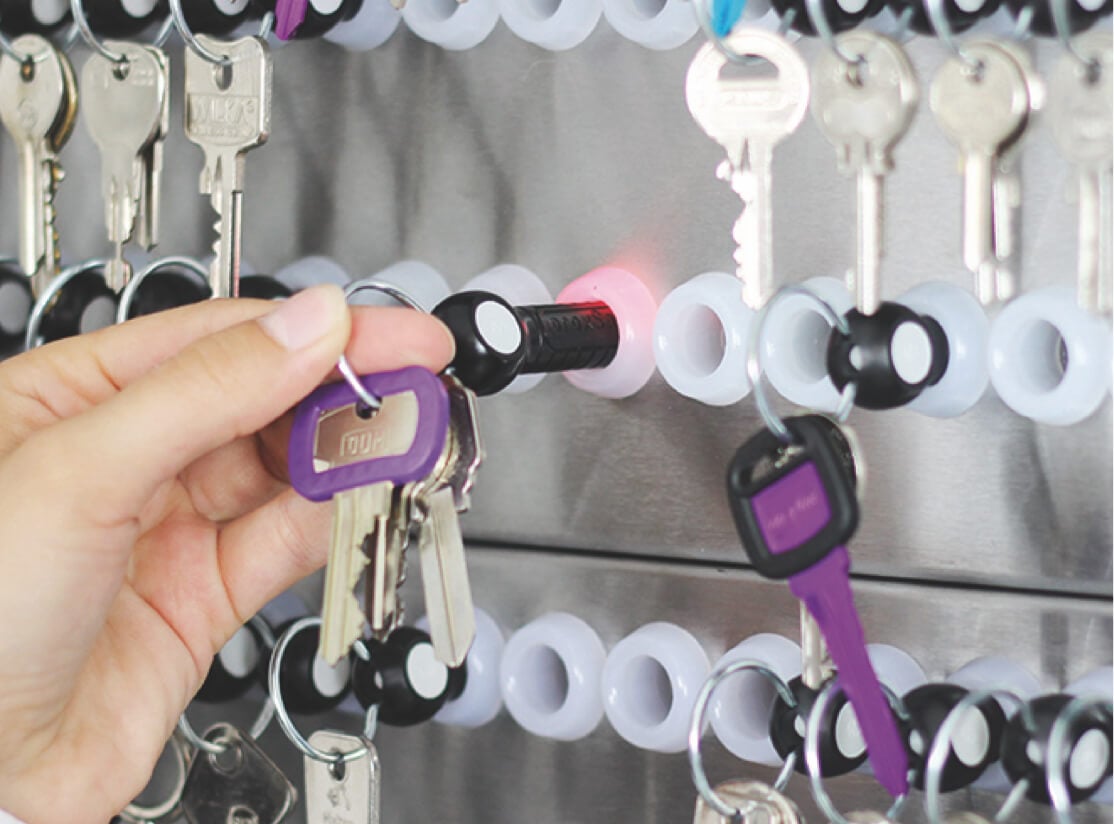

Digital
  • 125 kHz RFID Frequency
  • SSL encryption in transit
  • Apache Tomcat 8.5 or above
  • SQL Express 2012 or above
  • JDK 8 or above
  • Output: 4x 30 VDC / l A for up to 16 Alarms

Digital

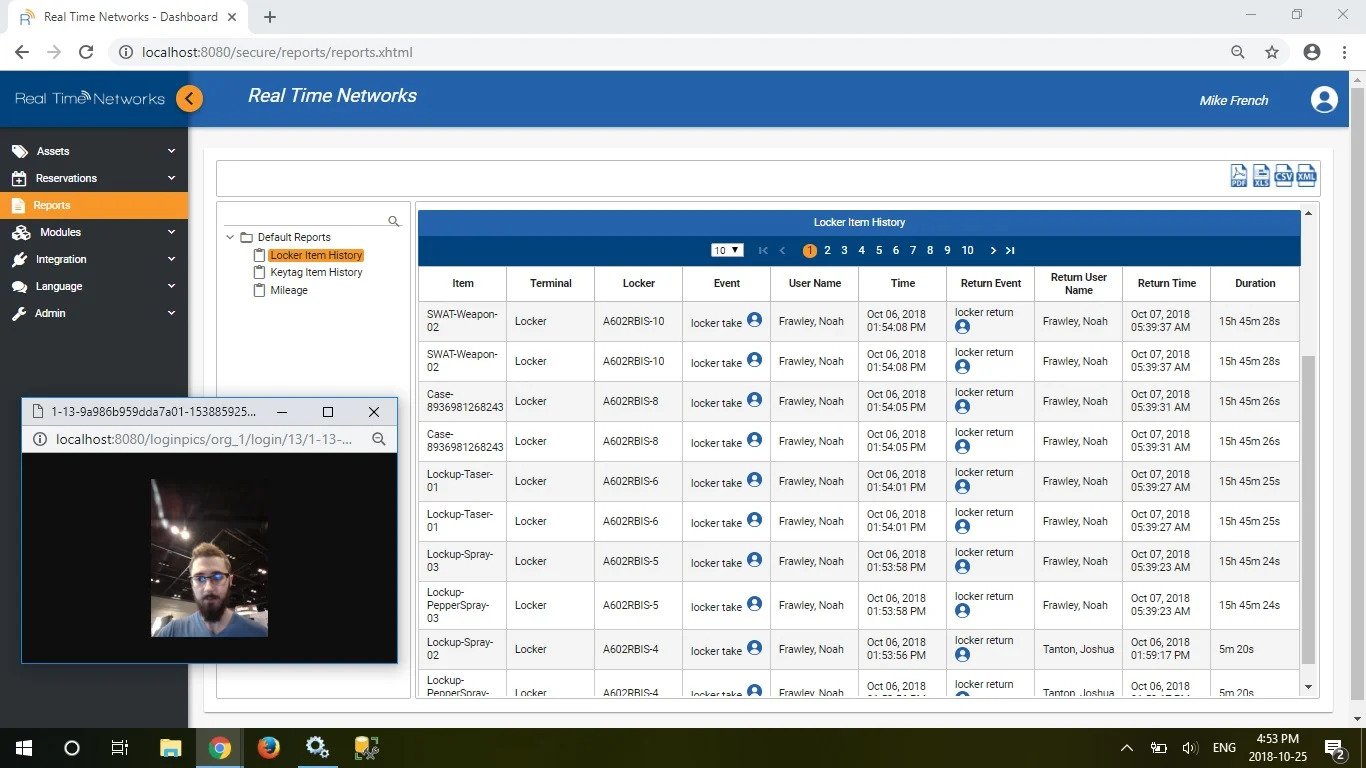

Integrated video surveillance

Enhance security by adding an integrated video camera to your key cabinets to record every transaction.

  • Discreet pinhole camera
  • Motion-triggered
  • Customizable time frame options (e.g., 3 seconds before and after an event)
Integrated video surveillance
